Do you want to know how complicated it is to create an MCP server in python using the official MCP package?
It’s complicated because:
- the MCP server should run over stdio
- transport belongs outside
- tools live inside
- and HTTP is just a gateway layer
This blog explains how I rewired my architecture.

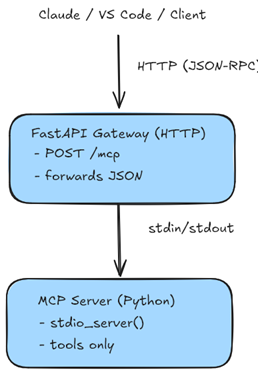

The Architecture
The application is composed of:
MCP Server
HTTP Gateway
Layer 1: The MCP Server
This is where:
- tables are queried
- tools are registered
- SQLite is accessed
- results are returned
For example:
import sqlite3
from contextlib import contextmanager
from typing import List, Dict, Any
from mcp.server import Server
from mcp.types import TextContent, Tool, ListToolsResult, ListToolsRequest
DB_PATH = "data_lake_config.db"
@contextmanager
def get_db():
conn = sqlite3.connect(DB_PATH)
conn.row_factory = sqlite3.Row
try:
yield conn
finally:
conn.close()
# ----- Core table logic -----
def get_last_import_date(table_name: str, business_line: str) -> Dict[str, Any]:
with get_db() as conn:
cursor = conn.cursor()
cursor.execute(
f"SELECT {environment} FROM table_config WHERE table_name=? AND business_line=?",
(table_name, business_line),
)
row = cursor.fetchone()
if not row or row[0] is None:
return {"exists": False, "last_imported": None}
return {"exists": True, "last_imported": row[0]}
def get_table_status(table_name: str, business_line: str) -> Dict[str, Any]:
with get_db() as conn:
cursor = conn.cursor()
cursor.execute(
"SELECT table_name, business_line, dev, st, uat, prod "
"FROM table_config WHERE table_name=? AND business_line=?",
(table_name, business_line),
)
row = cursor.fetchone()
if not row:
return {"found": False}
return {"found": True}
def list_tables(business_line: str = None) -> List[Dict[str, Any]]:
with get_db() as conn:
cursor = conn.cursor()
cursor.execute(
"SELECT table_name, business_line FROM table_config"
)
rows = cursor.fetchall()
tables = []
for r in rows:
tables.append({
"table_name": r["table_name"],
"business_line": r["business_line"],
})
return tables
# ----- MCP Server Setup -----
server = Server(name="demo-mcp", version="0.1.0")
# ----- Tool wrapper functions -----
async def tool_get_last_import_date(table_name: str, business_line: str, environment: str):
return [
TextContent(type="text", text=str(get_last_import_date(table_name, business_line, environment)))
]
tool_get_last_import_date.description = "Get last import date"
tool_get_last_import_date.inputSchema = tool_check_table_exists.inputSchema
async def tool_get_table_status(table_name: str, business_line: str):
return [
TextContent(type="text", text=str(get_table_status(table_name, business_line)))
]
tool_get_table_status.description = "Get complete table status"
tool_get_table_status.input_schema = {
"type": "object",
"properties": {
"table_name": {"type": "string"},
"business_line": {"type": "string"}
},
"required": ["table_name", "business_line"]
}
async def tool_list_tables(business_line: str = None, environment: str = None):
return [
TextContent(type="text", text=str(list_tables(business_line, environment)))
]
tool_list_tables.description = "List all tables"
tool_list_tables.input_schema = {
"type": "object",
"properties": {
"business_line": {"type": "string"},
"environment": {"type": "string", "enum": ["dev", "st", "uat", "prod"]}
},
"required": ["business_line", "environment"]
}
# ----- Register tools -----
server.call_tool()(tool_get_last_import_date)
server.call_tool()(tool_get_table_status)
server.call_tool()(tool_list_tables)
# ----- ListTools handler -----
@server.list_tools()
async def list_all_tools(_req: ListToolsRequest = None):
"""
Always return all available tools in the proper MCP format.
"""
return ListToolsResult(tools=[
Tool(
name=func.__name__,
title=func.__name__.replace("_", " ").title(),
description=getattr(func, "description", ""),
inputSchema=getattr(func, "inputSchema", {})
)
for func in [
tool_get_last_import_date,
tool_get_table_status,
tool_list_tables
]
])
The magic is in the Tool wrapper functions that describe the functions, input, output, etc.
Other piece of magic is the list_all_tools function that will be called from the HTTP Gateway to register the functions in the MCP Server
Layer 2: The HTTP Gateway
he gateway is thin by design.
It only:
- receives HTTP POST MCP messages
- forwards them to the stdio server
- sends back results
That’s it.
It never contains:
- database code
- tool logic (sort off)
- schemas
- MCP state
It is a stateless transport wrapper that Azure or Docker can run.
For example:
from fastapi import FastAPI, Request
from fastapi.responses import JSONResponse
from mcp import types
import uvicorn
from mcp_server import server
app = FastAPI(title="Demo MCP Gateway")
@app.post("/mcp")
async def mcp_proxy(request: Request):
body = await request.json()
method = body.get("method")
request_id = body.get("id")
# ----- Initialize -----
if method == "initialize":
return JSONResponse({
"jsonrpc": "2.0",
"id": request_id,
"result": {
"protocolVersion": "2024-11-05",
"capabilities": {"tools": {}},
"serverInfo": {"name": server.name, "version": server.version}
}
})
# ----- List tools -----
if method == "tools/list":
# Look up the registered handler
handler = server.request_handlers.get(types.ListToolsRequest)
if handler is None:
return JSONResponse({"jsonrpc": "2.0", "id": request_id, "result": {"tools": []}})
# Call the MCP server list_tools handler
server_result = await handler(None)
list_result = server_result.root
tools_list = [
{"name": t.name, "description": t.description, "inputSchema": t.inputSchema}
for t in list_result.tools
]
print("Registered tools:", tools_list)
return JSONResponse({
"jsonrpc": "2.0",
"id": request_id,
"result": {"tools": tools_list}
})
# ----- Call a tool -----
if method == "tools/call":
params = body.get("params", {})
tool_name = params.get("name")
arguments = params.get("arguments", {})
# Dispatch to MCP server call_tool handler
handler = server.request_handlers.get(types.CallToolRequest)
if handler is None:
return JSONResponse({
"jsonrpc": "2.0", "id": request_id,
"error": {"code": -32601, "message": "tool handler not registered"}
})
server_result = await handler(types.CallToolRequest(params=types.CallToolParams(name=tool_name, arguments=arguments)))
result = server_result.result
# Build standard MCP response
return JSONResponse({
"jsonrpc": "2.0",
"id": request_id,
"result": {
"content": [{"type": c.type, "text": c.text} for c in result.content]
}
})
# ----- Unknown method -----
return JSONResponse({
"jsonrpc": "2.0",
"id": request_id,
"error": {"code": -32601, "message": f"Unknown method: {method}"}
})
if __name__ == "__main__":
# Run server
uvicorn.run(app, host="0.0.0.0", port=8000)
Testing it all out
First, we start the server.
The we register the server in VS Code as MCP Server.
If everything is ok then the logs should look like:
[info] Starting server from LocalProcess extension host
[info] Connection state: Running
[info] Discovered 3 tools
And now it’s ready to use in VS Code.
